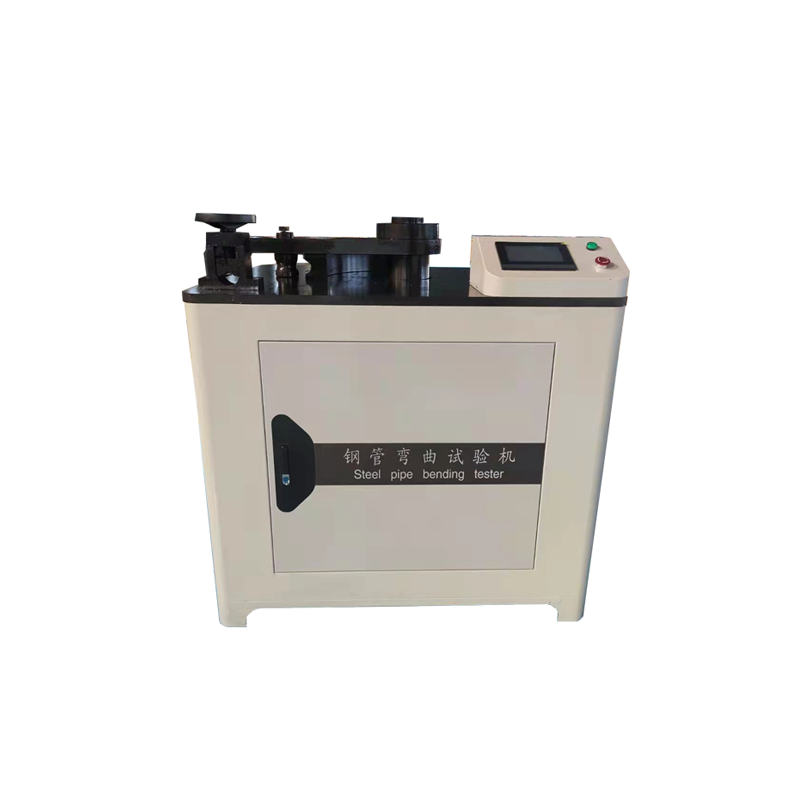

Steel pipe bending testing machine

The steel pipe bending testing machine has an external diameter not greater than Φ The ideal equipment for bending tests of 60.3 steel pipes. This equipment is based on GB/T244-2020 ISO8491:1986 (E) “Metal Pipe Bending Test Method” – Welded Steel Pipe for Low Pressure Fluid Transportation GB/T 3091-2001. This product is widely used in metal pipe factories, pipeline enterprises, and construction quality inspection departments to test the bending performance of the steel pipe.

This steel pipe bending testing machine is composed of seven parts: a frame, a workbench, a rotating working arm, a steel pipe bending center, a cycloidal pinwheel reducer, a steel pipe radial fastening device, an electrical controller, etc. It has the advantages of compact structure, touch screen display, simple operation, large bearing capacity, stable operation, low noise, and real-time display of bending angle, intuitive, safe, reliable, and convenient maintenance.

The working principle of this testing machine: one end of the steel pipe is fixed, and the other end rotates clockwise around the dedicated bending center. The digital integrated circuit is used. The bending angle of the testing machine is shaped and divided by the photoelectric pulse obtained on the high-speed shaft of the motor, and the angle is counted and continuously accumulated for display. When the working disc of the testing machine turns to the set angle, the circuit program controls the brake motor to power off and stop rotating.

Main technical parameters:

Maximum diameter of bent steel pipe: Φ sixty point three

Positive bending angle can be set arbitrarily within 0-90 °

Reverse bending angle can be set arbitrarily within 0-90 °

Working disk speed ≤ 0.4rad/s

Motor power 1.5kW

Machine dimensions (cm) 155 × one hundred and eleven × one hundred and fifty

Main machine weight 808Kg
