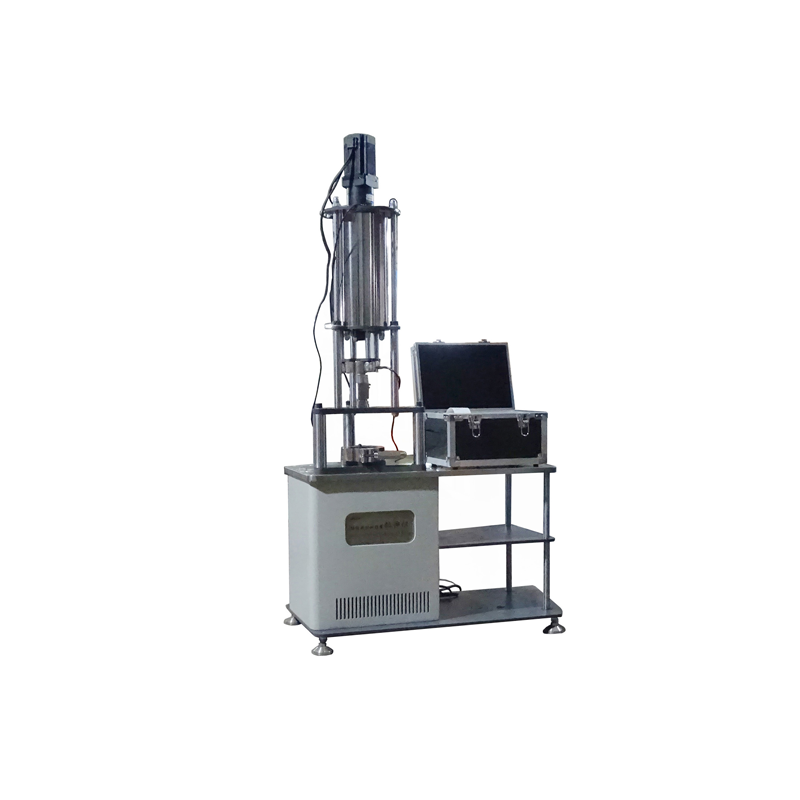

Structural Layer Material Strength Tensile Tester

1、 high precision, the instrument testing results accuracy range of 0.01KN.
2、 Tensile force digital display, peak value saving, print test results.
3、 Maximum pull-out force (range): 0N~30KN
4、 Effective detection range: 1%~100% of the maximum experimental force
5、 Load resolution (minimum value): 10N
6、 Load measurement accuracy: within ±1% of the display value
7、 Tension mode: uniform, uniform force, adjustable
8、 Tensile range of test head：100mm
9、 Test head diameter: φ100mm
10、drive mode: AC servo motor drive
11、Operating interface: touch screen computer
12、 Power supply: single-phase AC 220V / 50Hz, motor power 200 W
13、 external dimensions: width 700mm length 700mm height 830mm
14、Weight:115KG
