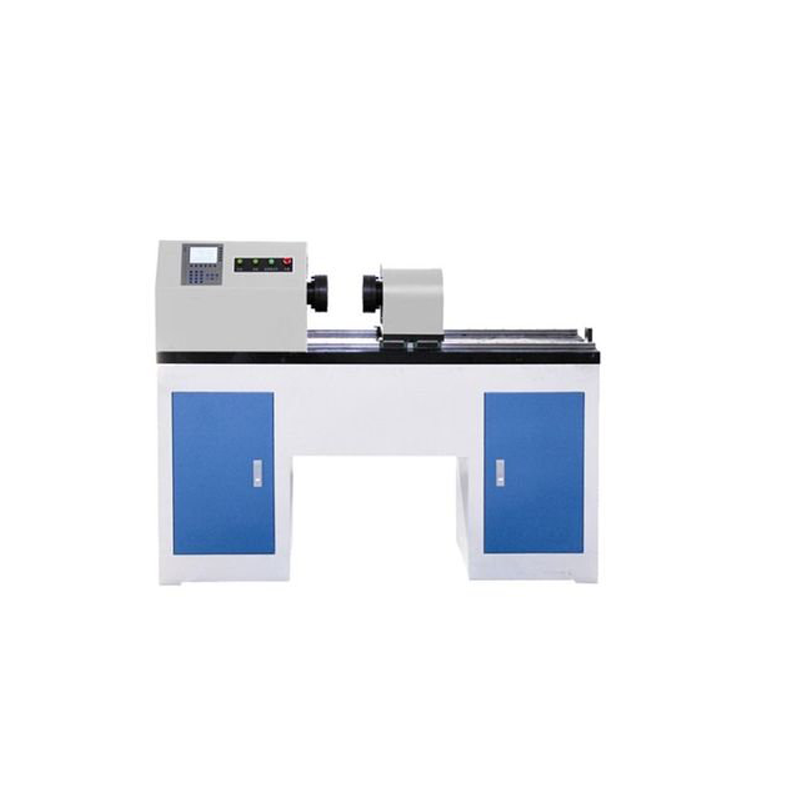

Touch Screen Control Band Torsion Testing Machine Watch Strap Stretch Twist Tester
Touch Screen Control Band Torsion Testing Machine Watch Strap Stretch Twist Tester
Application:
This machine is used to test the band torsion test. Using PLC and touch screen control system, the torsion value can be set to test the torsion life to see whether the band function is normal and counted at a time.After the test, function, appearance and assembly testing shall meet the requirements of relevant standards.
| Operation method | Touch screen |
|
Loheavy yuan |
10 N.m (Set-able) |
|
Working table size |
130mm*120mm |
| Torsional frequency | At 1~60 times / minute |
| counter | ±0.1° |
| angle |
Angle can be set at any number, and starting angle |
|
Transimission gear |
Ball screw |
|
Power composition |
Servo motor |
|
Maximum stretch length |
400mm |
|
Angle accuracy |
± 0.1 degree |
|
Torsional force accuracy |
±0.1%F.S |
|
Residence time |
From 1 second to 5 minutes |
|
Touch screen |
7 Inch |
|
Poise |
1kg, 2kg and 5kg |
|
Voltage |
220V |
|
Outline dimension |
980mm*500mm*40mm |
|
Weight |
100kg |
