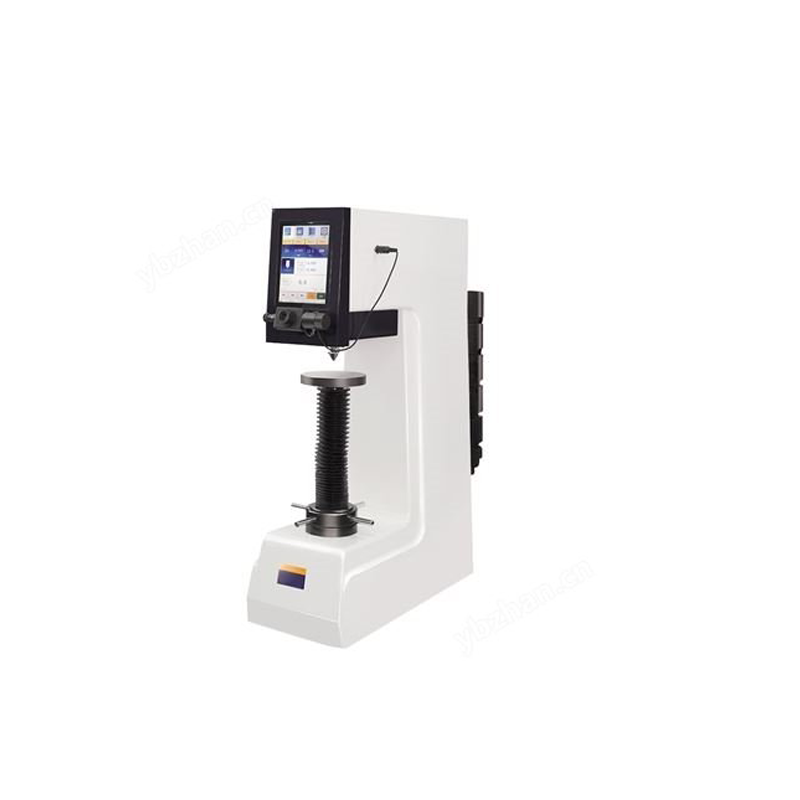

Touch Screen Digital Brinell Hardness Tester
[rank_math_breadcrumb]
Touch Screen Digital Brinell Hardness Tester
| Operation mode | Touch digital display Brinell |
| 12 Brinell scales | HBW2.5/62.5,HBW5/62.5,HBW10/100,HBW5/125,HBW2.5/187.5,HBW5/250
,HBW10/250,HBW10/500,HBW5/750,HBW10/1000,HBW10/1500,HBW10/3000 |
| Test force loading | Fully automatic (loading/unloading/holding) |
| Compliance with standards (accuracy) | GB/T231.2 National Standards and JJG150 Verification Regulations |
| Micrometer eyepiece | Digital micrometer eyepiece 20X |
| Minimum detection unit | 0.5μm |
| Measurement data collection method | Automatic collection |
| Measurement data calculation method | Automatic calculation |
| Display method of hardness value | Digital touch screen |
| Pressure head specifications | 2.5mm, 5mm, 10mm |
| Conversion scale | HRA;HRB;HRC;HRD;HEF ;HK;HV;HR15N;HR30N;HR45N;
HR15T;HR30T;HR45T;HBW |
| Built-in printer | Yes (thermal paper micro printer) |
| Number of test storage groups | 0-30 group |
| Hardness measurement range | 8-650HBW |
| Test force holding time | 0-60 seconds (s) (in units of 1 second (s) |
| Light source brightness adjustment | Level 10 adjustable |
| Maximum height of the specimen | 235mm |
| Distance from the center of the pressure head to the inner wall | 135mm(calculated from the center) |
