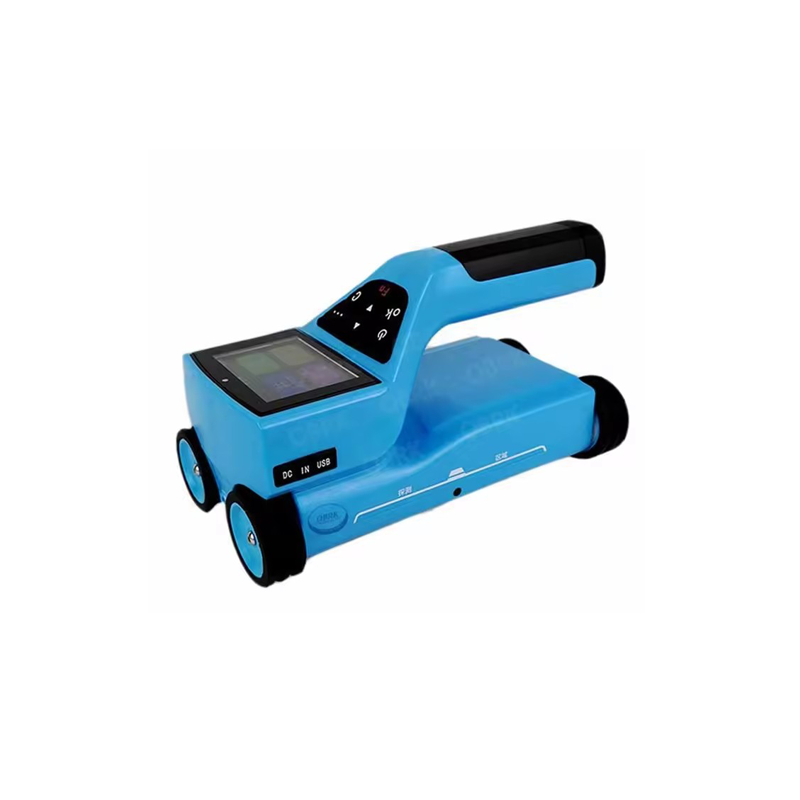

Touch screen integrated steel bar detector concrete rebar scanner

1.Rebar diameter setting range：Φ6mm ~ Φ50mm

2.Small range：2-100mm

3.Large range：2-200mm

4.Maximum thicknessof protective layer：±1    2-75mm

±2    76-100mm

±3    101-130mm

±4    131-200

5.Diameter estimation range：6mm-50mm

6.Diameter indication maximum error：±1 specification

7.Diameter display accuracy：0.1mm

8.Screen size：3.2 Inch

9.Working temperature：-10℃~+40℃

10.Working humidity：<90%RH

11.Weight：5Kg
