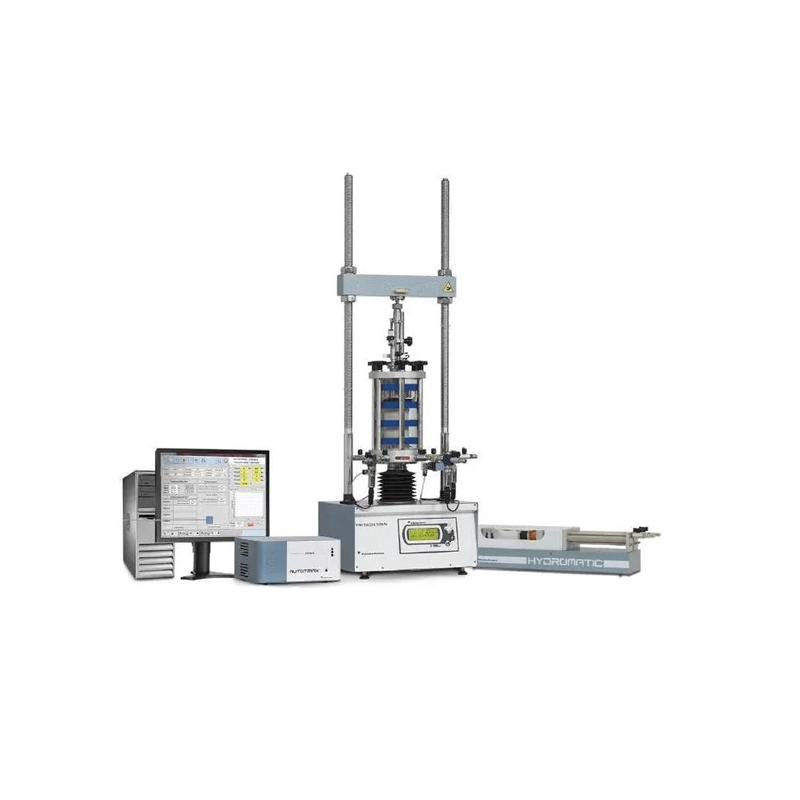

Triaxial Load Frame Triax for triaxial test apparatus
[rank_math_breadcrumb]
Triaxial Load Frame Triax for triaxial test apparatus
| Number of channels | 2 | 2 | 1 |
| Maximum Pressure | 2 Mpa | 2 Mpa | 2 Mpa |
| Pressure Resolution | 1 kPa | 1 kPa | 1 kPa |
| Maximum Volume | 60 ml | 150 ml | 200 ml |
| Volume Resolution | 0.001 ml | 0.001 ml | 0.001 ml |
| Precision | +/- 0.1 % F.S. | +/- 0.1 % F.S. | +/- 0.1 % F.S. |
| Confining Pressure | Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
| Back Pressure | Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
| Pore Pressure | Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 0.1% F.S. |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 0.1% F.S. |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 0.1% F.S. |
| Power | 110-240V, 50Hz | 110-240V, 50Hz | 110-240V, 50Hz |
| Dimension | 870mm (L) x530mm (W) x 320mm (H) | 1010×530×320 | 650X94X123 |
| Weight | 38 kg | 62kg | 80kg |
Technical Specifications:
| Model Number | SG-1 | SG-3 | SG-5 | SG-10 | SG-20 |
| Maximum Axial Force (Load Sensor) | 10KN | 30KN | 50KN | 100KN | 200KN |
| Maximum Diameter | Ø70mm x 140mm (H) | Ø100mm x 200mm (H) | Ø150mm x 300mm (H) | Ø200mm x400mm (H) | Ø200mm x400mm (H) |
| Testing Speed Rate | 0.00001 – 9.99999 mm/min | 0.00001 – 9.99999 mm/min | 0.00001 – 20mm/min | 0.00001 – 20mm/min | 0.00001 – 9.99999mm/min |
| Precision | +/- 0.1% F.S. | ||||
| Displacement Measuring Range | 50mm | 80mm | 100mm | 150mm | 150mm |
| Maximum Vertical Clearance | 500mm | 540mm | 720mm | 720mm | 670mm |
| (700mm) | (700mm) | ||||
| Horizontal Clearance | 240mm | 300mm | 360mm | 450mm | 610mm |
| Power | 110 or 240V | ||||
| Dimension(mm) | 400×350×830 (mm) | 600×350×1180 (mm) | 600×450×1180 (mm) | 800×520×1660(mm) | 1000×700×2200(mm) |
| Weight(kg) | 45kg | 98kg | 120kg | 240kg | 860kg |
