Triaxial Test Equipment Testing Device New High Precision Rock

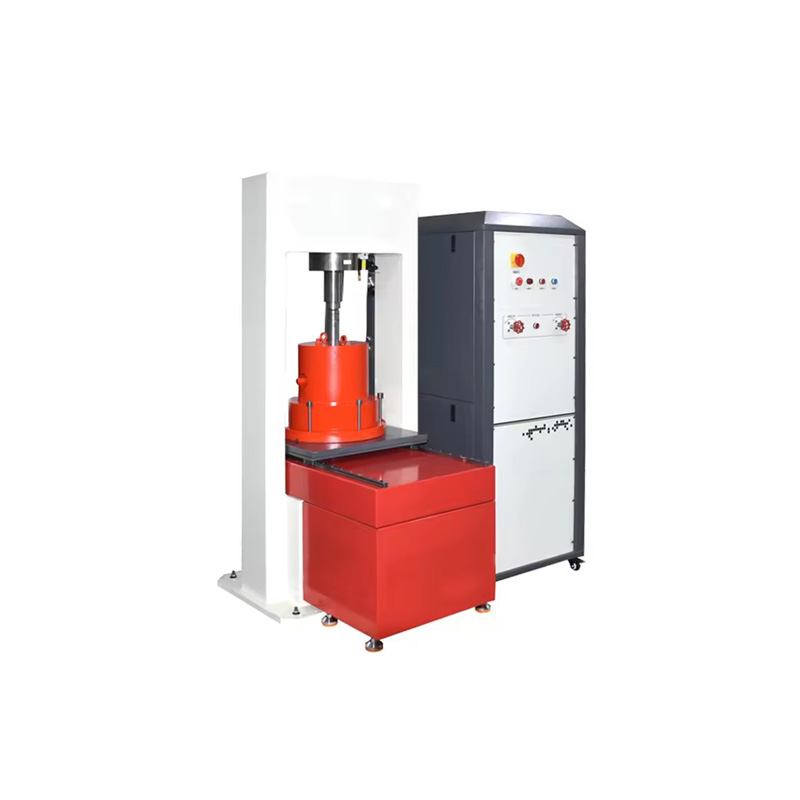

The microcomputer servo rock triaxial testing machine is a testing equipment used in the field of rock mechanics to study the mechanical properties and shear properties of rocks in various environments. This machine can automatically complete the triaxial compression test of rocks. The rock triaxial instrument mainly consists of a high-stiffness host machine, a pressure self-balancing triaxial pressure chamber, a supercharger, a servo hydraulic source, an axial loading and control device, a confining pressure loading and measurement control, a pore water pressure loading and measurement device, and a temperature It is composed of measurement system and device, computer measurement and control system and other parts.

1.Host stiffness：≥7000kN/mm

2.Axial test force：500kN

3.Force measurement resolution：0.01-0.05KN

4.Force measurement accuracy：±0.5%

5.confining pressure：0~10Mpa

6.Confining pressure measurement and control accuracy：±0.5%

7.Confining pressure resolution：1KPa

8.water pressure：0~10Mpa

9.Measurement and control accuracy：±0.5%

10.Measurement resolution：1KPa

11.Displacement measurement and control range：0-200mm measurement accuracy ±0.5%FS

12.Sample specifications：Φ50X100mm and Φ80×160mm
