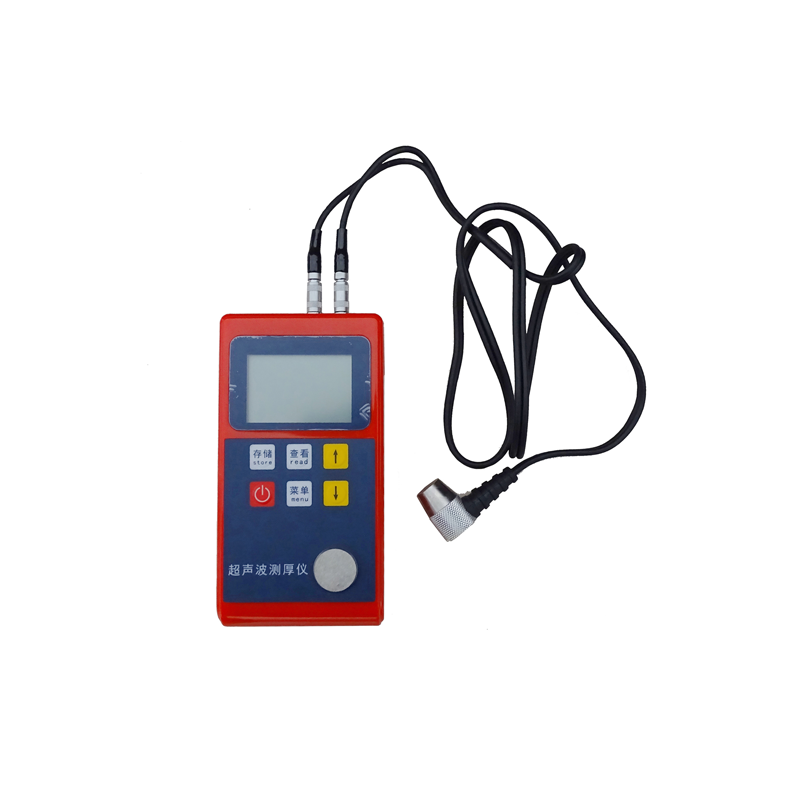

Ultrasonic Thickness Gauge

1. High resolution: display resolution is 0.01mm when measuring workpieces under 100mm.
2. Automatic zero calibration: the system error can be corrected.
3. Shutdown mode: automatic shutdown (three minutes after no operation)
4. Speed of sound adjustment: can use the known thickness of the test block to measure the speed of sound
5. Data storage: can store 10 thickness and 5 sound channel values
6. Measuring range: 0.75-300mm
7. Display resolution: 0. 1mm
8. Speed of sound range: 1000-9999m/s
9. Workpiece surface temperature: -10-+60
10. Measurement accuracy: (1%H+0.1) mm, H is the actual thickness value
11. Pipe measurement lower limit: 20mm * 3.0mm
