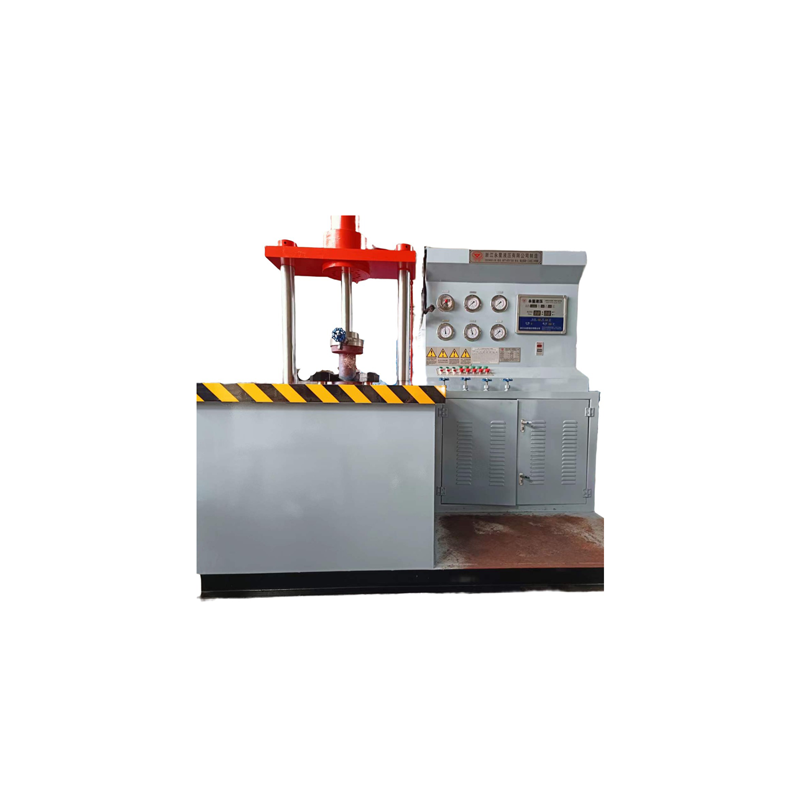

Valve water pressure multi-function testing machine

Valve hydraulic multifunctional testing machine, the Department of machine, electricity, liquid integration, high technology content, high degree of automation of the valve testing equipment. Equipment from the constant view of the hydraulic valve test bench, can increase the touch screen and PLC automatic control system.
Equipment to hydraulic pressure as a driving force, drive the test valve tightening cylinder, high pressure pump driven by oil high pressure pump generated by the low-pressure part of the test medium water generated by the low-pressure pump, high pressure part of the oil driven by the high-pressure pump generated by the high pressure part of the test medium water, and can be automatically replenished (whether or not to make up for the pressure automatically by the operator’s choice). The control of the whole system is realized by conventional or touch screen and PLC automatic control system.

Technical Parameters：

1.Test range:DN50-300;.
2.Pressure range:0-25MPa.
3.Structure length of valve under test:200-700.
4. Measured flange diameter:165-485.
5. Inside spacing of column:605.
6. Maximum distance between blind plates:800.
7. Upper clamping cylinder:ø180, max. compression force 80 tons, stroke 350.
8.Lower clamping cylinder: 3*ø125, max. clamping force 60 tons, stroke 100
9. Low pressure water pump: 220V, 125W self-priming type.
10. Parameters of booster pump: 380V, 1.5KW.
11. Hydraulic station parameters: 380V, 3KW. 3-way solenoid valve control, 1-way solenoid unloading valve. 46 # wear-resistant hydraulic oil 60 liters.
12. Dimensions of the host: length, width, height 2000 * 1300 * 2300.
13.total weight:1.2T
