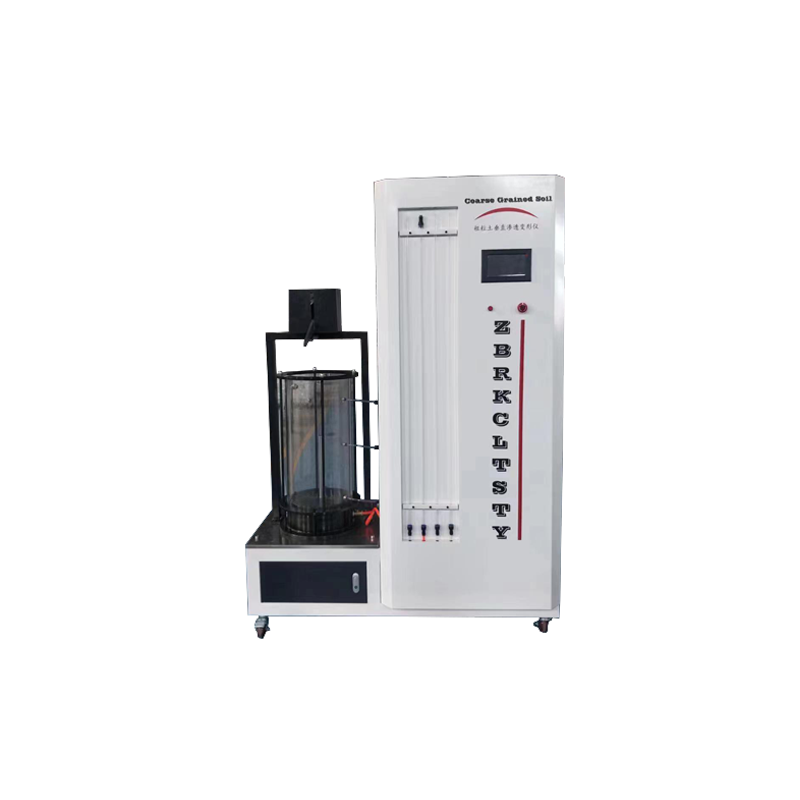

Vertical infiltration deformation meter for coarse grained soil
Vertical infiltration deformation meter for coarse grained soil
This test complies with GB/T 50123-2019 Geotechnical test method standard, the test method adopts infiltration water flow from left to right, applicable to coarse-grained soil, for the determination of permeability coefficient of coarse-grained soil, dry density porosity, infiltration drop slope, seepage flow rate and other parameters.
1.Specification Model: DLY-1
2. Test cylinder size: ф300mm
3. Height of test cylinder: 600mm
4. Water supply tank specification: φ200*200mm
5. Control: button control
6. Weight of the whole machine: 238kg
7.Dimensions: (L*W*H) 120*90*200cm
