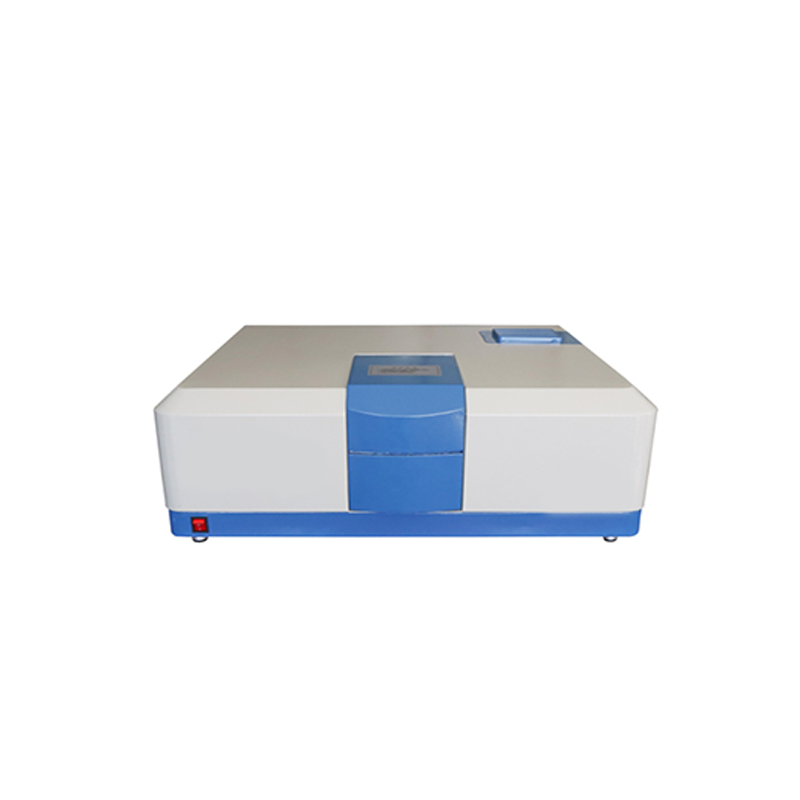

Visible Light Transmission Ratio/Shading Coefficient Calibration System for Architectural Glasses

1、Operating wavelength range: 190nm-2800nm

2, scanning mode: transmittance, absorbance, reflectance, energy

3, wavelength accuracy: ± 0.5nm (UV / VIS); ± 4nm (NIR)

4, wavelength repeatability: 0.5nm (UV/VIS); ± 4nm (NIR)

5, sampling interval: 0.1nm, 0.2nm, 0.5nm, 1nm, 2nm, 5nm, 10nm

6, photometric range: 0.300A ~ 2.5A

7, photometric accuracy: ± 0.3%T (0-100%T) (UV/VIS)

8, photometric repeatability: 0.2%T

9, spectral bandwidth: 0.2nm-10nm

10, stray light: ≤ 0.2%T (220nm)

11、Dimensions：830*600*260mm

12, baseline straightness: ± 0.008A (200nm-2500nm, 30 minutes after preheating)

13、Power supply: AC220V 50Hz
