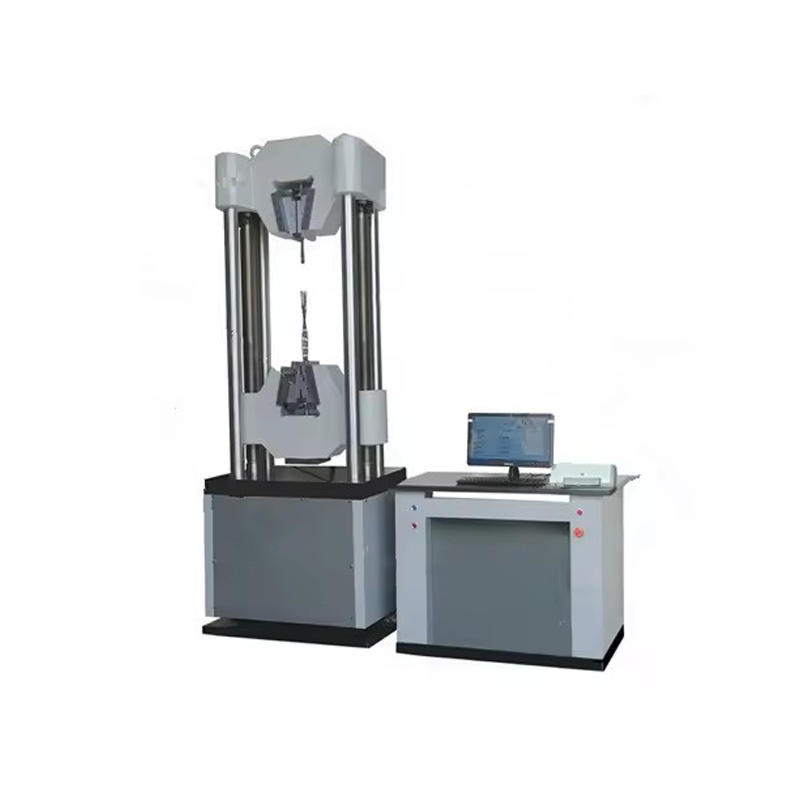

WAW Microcomputer Controlled Electro-hydraulic Servo Steel Stranded Wire Universal Testing Machine

This machine used to do tension test of steel stranded wire, it can used to perform tension, compression, bend, shear test of metal and non-metal material. Oil cylinder of machine is underneath type, can free adjust testing room, automatic hydraulic clamp system, four column of main frame structure can be adjustable. Use import high quality electronic parts and components for production. Windows platform software.It has the feature such as automatic calibrate load, distortion, automatic switch measuring  range, automatic stock test condition, test result,automatic count Fm, ReL, ReH, RP0.2, RP0.05, Rm and elastic modulus E et.. It has the function of dynamic display test data and curve when test, data edition, browse test curve, magnification, superposition, comparison et., can print complete test report and test curve.

Product Description

1.testing power:2000kN,1000kN,600kN
2.Testing range:0-1000kN,0-600kN
3.Error:<±1%,<±0.5%
4.Max. tension distance:1000mm
5.Piston distance:250mm
6.Working voltage:AC380V
7.Power of oil pump motor:2.0kW,1.5kW

Features:
1. Four upright posts, hard chromeplated, easy installation of hydraulic jaw, tension fractureposition in the middle of specimen.
2. With high quality parts, imported motor, thick steel column, plates and beam
3. Noncorrosion column and screw poles to ensure long time application
4. Using servo motor driven mute pump
5. Steady working
