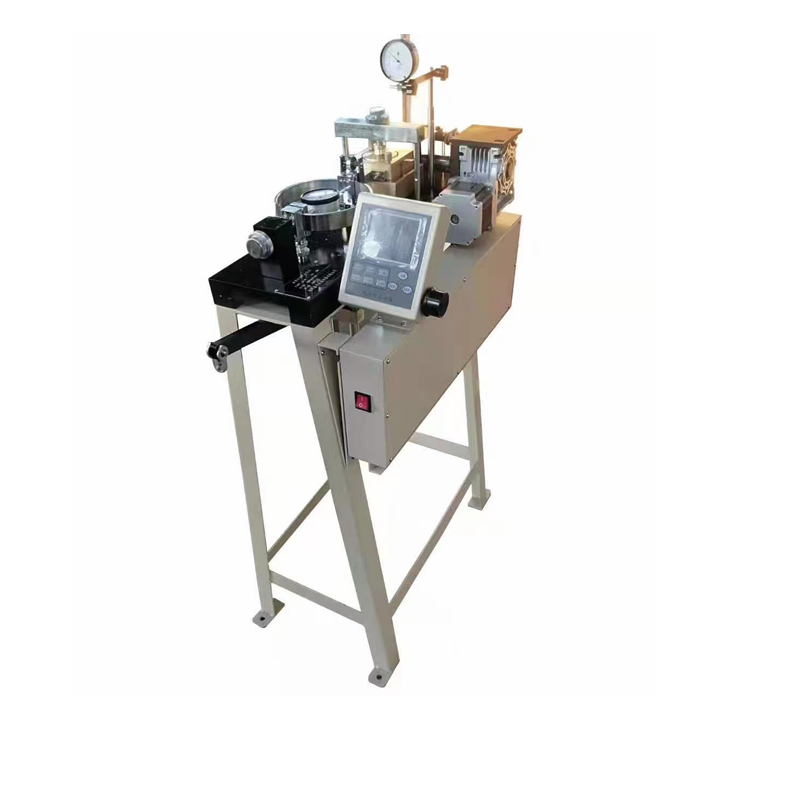

Factory Made Digtal Electric Soil Direct Shear Test Apparatus

The Direct Shear Test is an experimental procedure conducted in geotechnical engineering practice and research that aims to determine the shear strength of soil materials. Shear strength is defined as the maximum resistance that a material can withstand when subjected to shearing.

Generally, the Direct Shear Test is considered one of the most common and simple tests to derive the strength of a soil and can be performed on undisturbed or remoulded samples.

Model IWIN-STM01
Vertical load 50KPa, 100KPa , 200KPa , 300KPa , 400KPa
Corresponding weight 1.275,2.55,5.1,7.65,10.2kgs
Lever ratio 0.05
Level shear force Max. 1.2KN
Sample area(cm2 ) 30, height  2 CM
Shear rate(mm/min) 0.02, 0.8, 2.4
Power source 220V±10%, 50Hz
Dimension(mm) 830 x 530 x 1260 (LxWxH)
Net Weight 80 Kg
