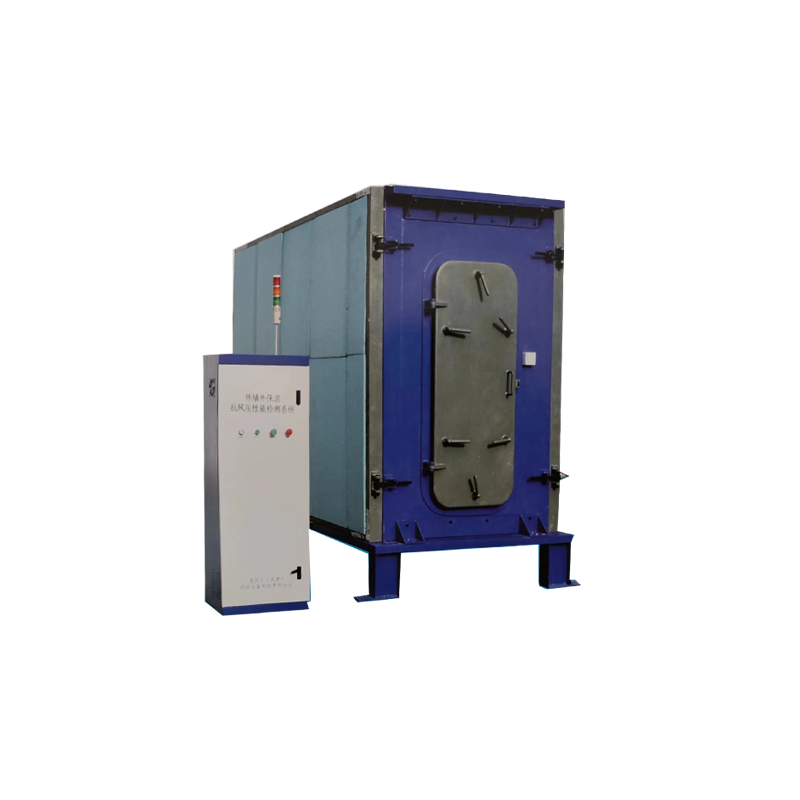

Wind Pressure Testing System for Exterior Wall Insulation

1. Wind pressure control range: -7000Pa~0Pa
2. Wind pressure test precision: 0.5%
3. Wind pressure control precision: ≤ control target pressure ± 5%
4. Pressure pulse process time control deviation: boost 0.7~1.0s, lasting 2~3s, buck: ≥4s
5. Cycle times: can be set arbitrarily, frequency control accuracy of 100%
6. With the maximum negative wind load design value W arbitrary settings, the default way of the pressurization process for the standard method, can also be artificially customized pressurization process program expansion requirements
7. Pipe diameter: 8″
